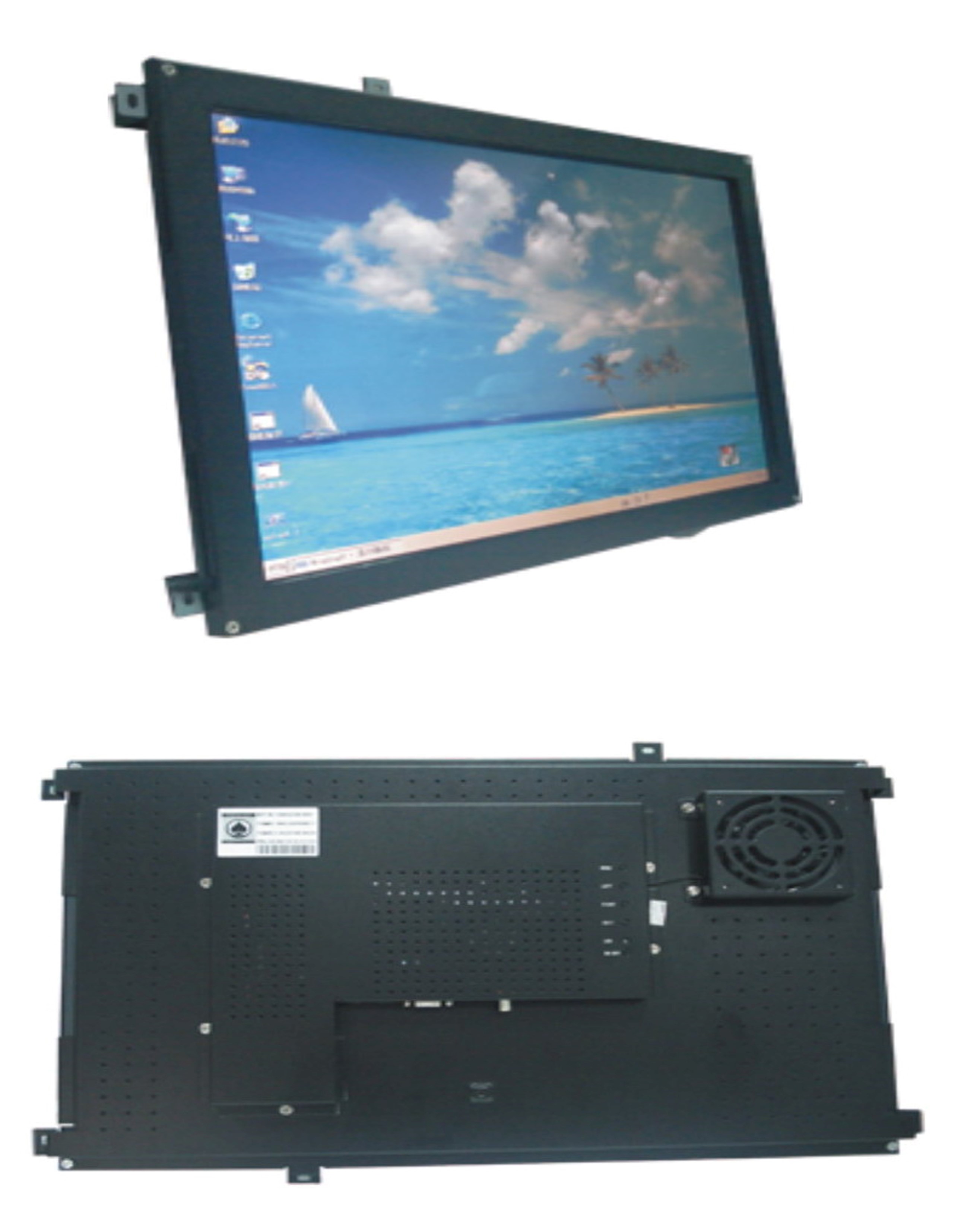

21.5″PCAP Touch Monitor
Model Name: KTA-215PJP01
Specification
Size: 21.5”
Brightness (nit): 300 nits
Resolution (pixel): WSXGA (1680 X 1050)
Active Area (mm): 473.78 X 296.1
Pixel Pitch (mm): 0.282
Mode: TN
Number of Colors: 16.7M
Support Color: 6bit + FRC Color Saturation (%): 72
View angle: 80/85
Contrast Ratio: 1000:1
Response Time (ms): 5
Power Consumption (w): 28.5W
Interface: Dual Channel LVDS
Supply Voltage (V): 5
Backlight: 8CCFL
V X H X T (mm): 493.7(W) X 320.1(H) X 16.7(D)
Touch Screen: Vandal Proof Water Proof Dust Proo
